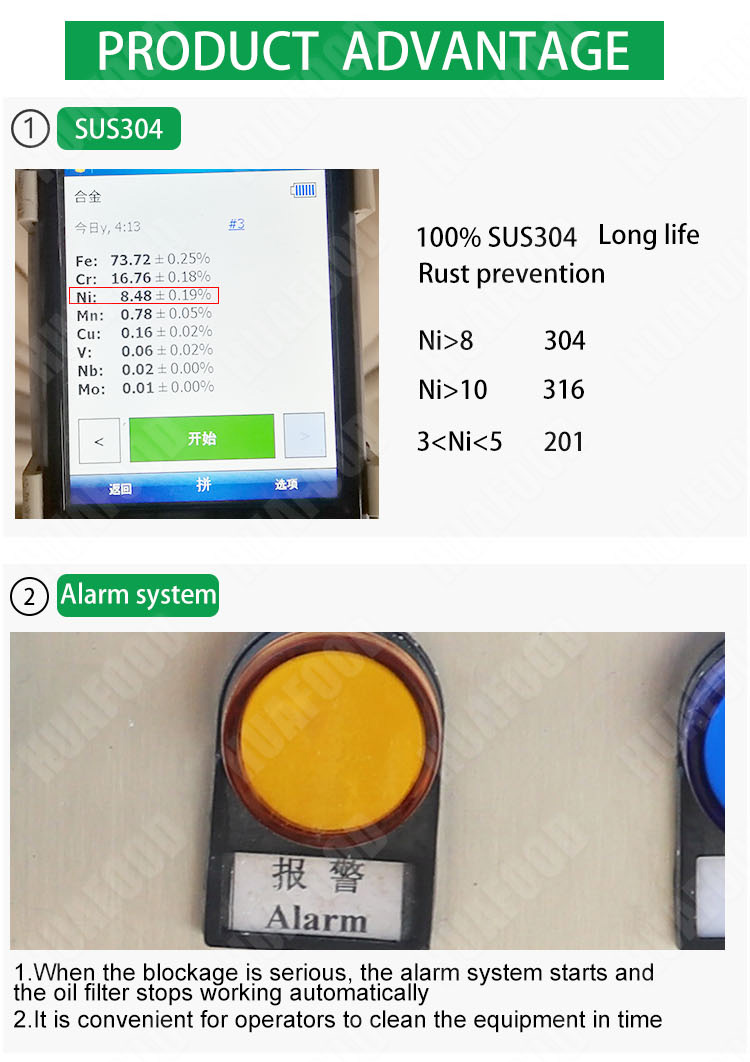

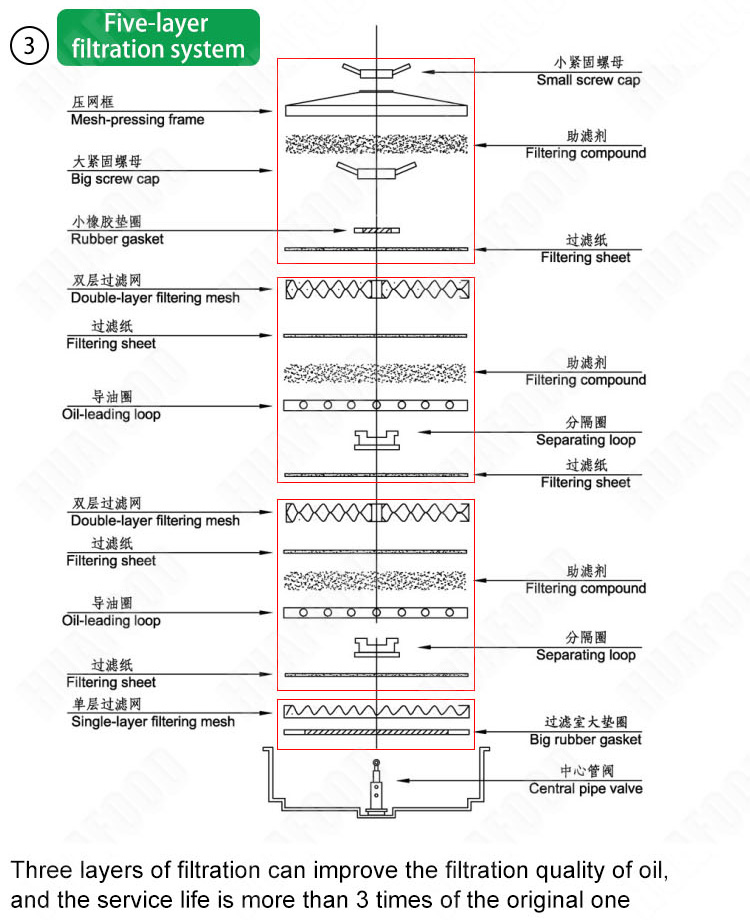

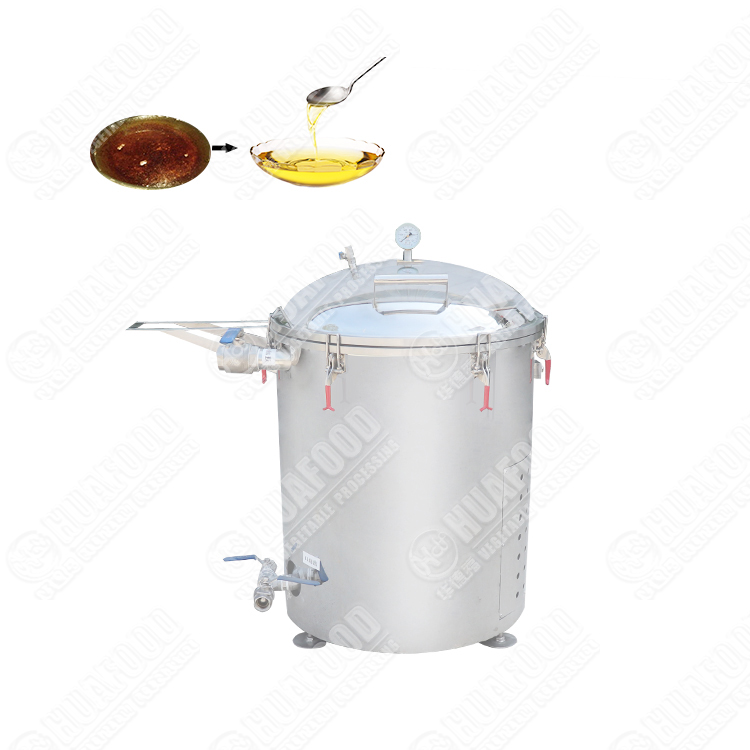

The vacuum oil filter is a small automatic circulating oil filter. Using food grade 100% SUS304 stainless steel mesh screen, high temperature resistance, strong corrosion resistance, to ensure that the composition of the filter oil is safer and will not rust, safe use and long life. Using five-stage filtration, the filtration rate is high. The biggest feature of the machine is the vacuum alarm function, which can protect the normal operation of the frying system. Suitable for small and medium-sized fried food production lines with a capacity of 100-500L.
Cooking Precision Circular Oil Filter
- Detalhes do produto
- Dados técnicos
- Recurso
- Exposição do produto final
- Investigação
Modelo |
HLY63-A |
HLY125-A |
HLY125-A |
Number of filter layers |
Five-segment type |
Five-segment type |
three-segment type |
Oil filtering quantity |
30L/min |
80L/min |
80L/min |
filter area |
1.03m2 |
2.0m2 |
1.2m2 |
outlet pressure |
0.5MPa |
0.5MPa |
0.5MPa |
Poder |
1.5kw |
3.0kw |
3.0kw |
Weight |
180kg |
550kg |
550kg |
Voltage |
380V/50Hz |
380V/50Hz |
380V/50Hz |
Diameter of oil inlet pipe |
1.0 inches |
2.0 inches |
2.0 inches |
Diameter of oil outlet pipe |
1.0 inches |
1.5 inches |
1.5 inches |
Tamanho da máquina |
850*850*1100milímetros |
1100*1000*1300milímetros |
1100*1000*1300milímetros |
