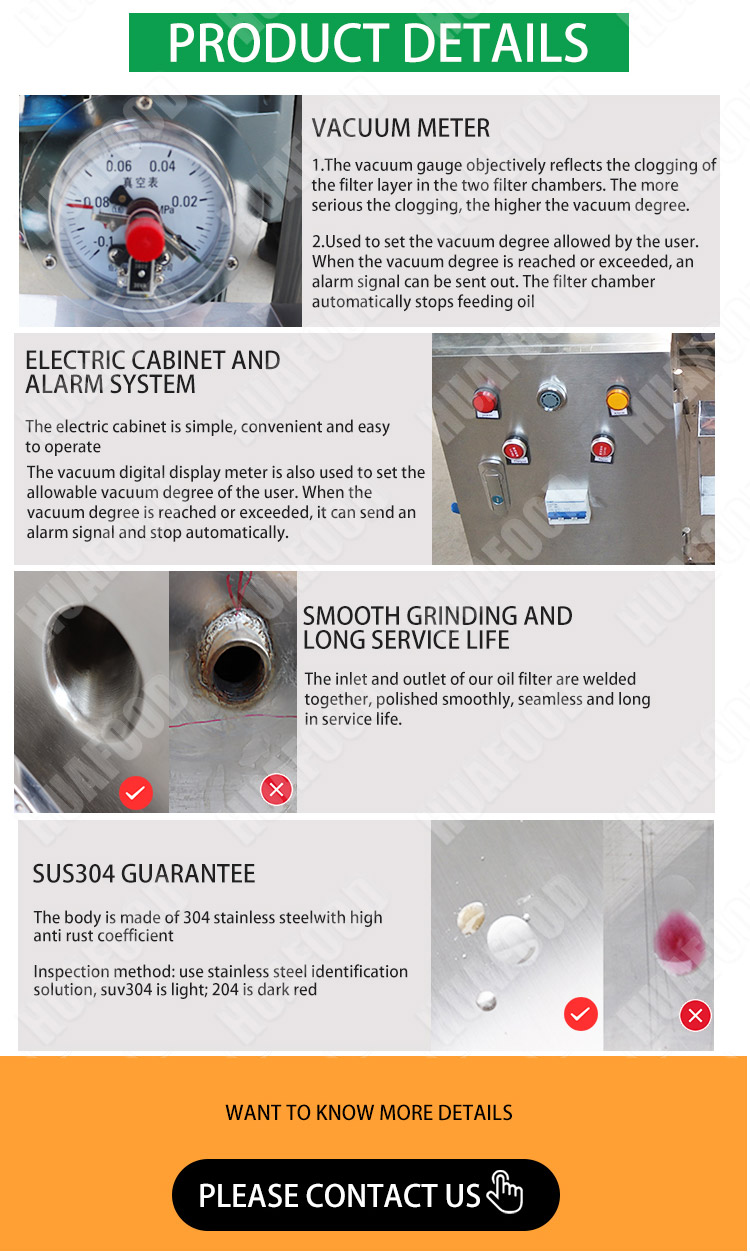

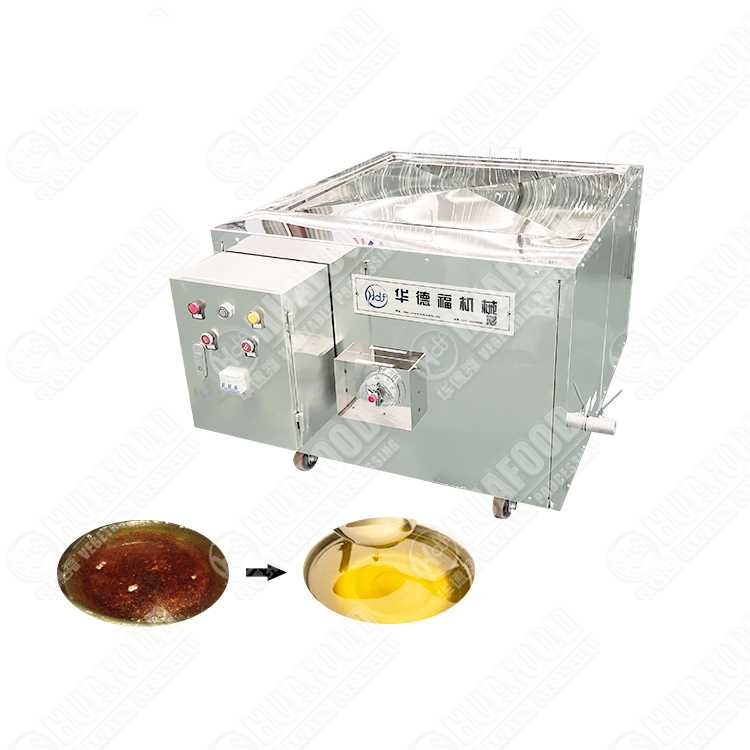

This Vacuum Oil Filter Machine is a small type automatic circulation oil filter machine. It can filtrate food continuous when frying. Also, it has obvious effect and high filter rate. The big feature of this machine is that it has a vacuum alarm, it can protect the frying system with normal running.
Potato Chips Batch Fryer Deep Fryer Oil Filter Machine
- Detalhes do produto
- Dados técnicos
- Recurso
- Exposição do produto final
- Investigação
Modelo |
HY63-F2(800*800) |
HY63-F2(645*645) |
HY63-F2(900*900) |
HLY20-D |
Tamanho da máquina |
1100*1230*750 |
1100*900*750 |
1340*1200*1100 |
500*450*400 |
Weight |
250kg |
220kg |
320kg |
100kg |
Oil filtering quantity |
40L/min |
30L/min |
80L/min |
5L/min |
filter area |
0.61m2 |
0.41m2 |
0.81m2 |
0.16m2 |
outlet pressure |
0.5MPa |
0.5MPa |
0.5MPa |
0.5MPa |
Poder |
3.0kw |
3.0kw |
3.0kw |
0.55kw |
Voltage |
380V/50Hz |
380V/50Hz |
380V/50Hz |
220V/50Hz |
Diameter of oil inlet pipe |
1.0 inches |
1.0 inches |
1.5 inches |
0.6 inches |
Diameter of oil outlet pipe |
1.0 inches |
1.0 inches |
1.5inches |
0.6 inches |
